SVM (Surround View Monitor) - If equipped

About SVM (Surround View Monitor)

Through the 4 cameras installed on the vehicle, it can view front, back, left and right side.

While the vehicle is started, if the gear selector is put into the R position, it automatically

starts the SVM (Surround View Monitor).

If the gear is changed from R to P position, SVM (Surround View Monitor) operation stops.

This system is a supplemental system only. It is the responsibility of the driver to always

check the area around the vehicle before and while moving.

Operating front SVM

After starting the vehicle, if you press "Camera Switch" after putting the gear to N or D, the front SVM starts.

1 Wide View (Front)

Only front screen of the vehicle is displayed.

2 Front Top View (Front + Left Front + Right Front)

Displays an enlarged top view of the front.

3 Left and right side view (Left Front + Right Front)

It displays left front/right front screen of the vehicle simultaneously.

4 Driving Rear View

Displays the rear screen when the vehicle is stationary.

5 Brightness/Contrast Setting

You can adjust Brightness/Contrast.

6 SVM Setting

Move to SVM settings Menu.

7 Front Camera View

Front camera's view is displayed.

8 Top View

Displays top view that combines front, rear, left/right camera images.

,Note

While the front SVM is running, if you drive at about 9 mi/h (15 km/h) or more, SVM is turned off. At this state, even if you drive at about 9 mi/h (15 km/h) or less, SVM will remained in the OFF state.

Operating rear SVM

After starting the vehicle, if you put the gear selector into the R position, rear SVM starts.

1 Wide View (Rear)

It displays only the rear screen of the vehicle.

2 Rear Top View (Rear + Left Rear + Right Rear)

Displays an enlarged top view of the rear.

3 Left and right side view (Left Front + Right Front)

It displays left rear/right rear screen of the vehicle simultaneously.

4 Driving Rear View

Displays the rear screen when the vehicle is stationary.

5 Brightness/Contrast Setting

You can adjust Brightness/Contrast.

6 SVM Setting

Move to SVM settings Menu.

7 Rear Camera Screen

It displays rear view through the rear camera.

8 Top View

Displays top view that combines front, rear, left/right camera images.

,Note

SVM (Surround View Monitor) camera uses a wide angle lens, so there may be a difference between the distance shown on the screen and actual. For safety, make sure to check the rear, left, and right view by yourself.

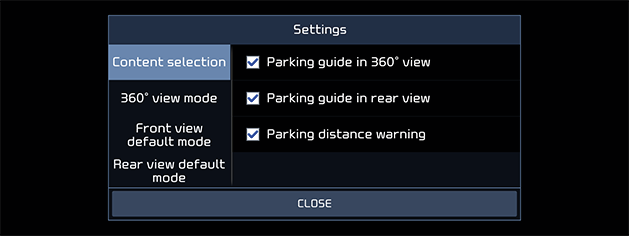

SVM setting

If you press [], it moves to 4 types of setting screens.

• [Content selection]: Enables/disables parking guide in 360º view, parking guide in rear view, parking distance warning function.
• [360º view mode]: Sets the top view camera to the default.
• [Front view default mode]: Sets the front camera to the default.
• [Rear view default mode]: Sets the rear view camera to the default.

Warning display

Driver's door open indicator

When the driver’s door is open, “” (red color icon on right door) indicator is displayed on the top left of the screen.

Front passenger's door open indicator

When the front passenger’s door is open, “” (red color icon on left door) indicator is displayed on the top left of the screen.

Trunk open indicator

When trunk is open,“”(red color icon on trunk) indicator is displayed on the top left of the screen.

Side mirror folding indicator

When the side mirror is folded, “” (red color icon on side mirror) indicator is displayed on the top left of the screen.
