Setup

Display settings

This menu is used to adjust the illumination and set the dimming mode for the whole system.

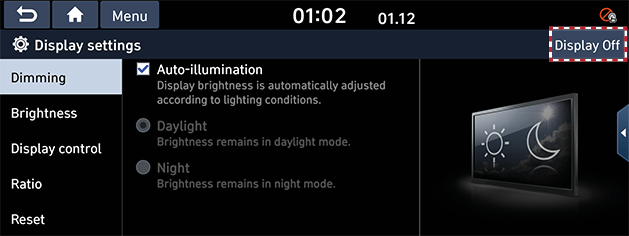

Display Off

This menu is used to turn the screen off.

Press [SETUP] button > [Display] > [Display Off].

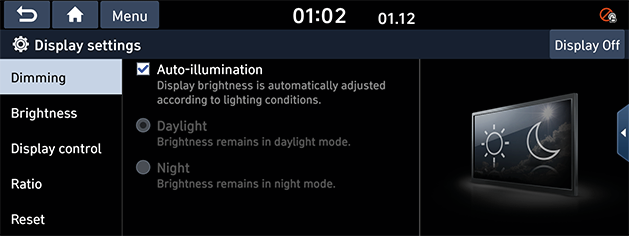

Dimming

Sets the display brightness according to mode changes.

  1. Press [SETUP] button > [Display] > [Dimming].


  1. Select the desired item.

,Note

To set daylight and night mode, press [Auto-illumination] to uncheck them.

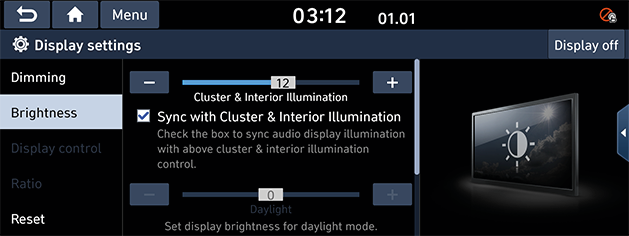

Brightness

This menu is used to set the brightness.

  1. Press [SETUP] button > [Display] > [Brightness].


  1. Select the desired item.

,Note

  • To set daylight and night mode, press [Sync with Cluster & Interior Illumination] to uncheck them.
  • Press [Centre] to initialize the settings.

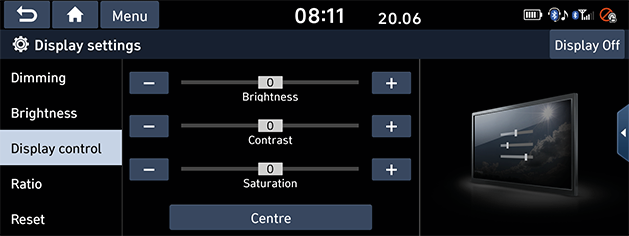

Display control

This menu can be set during video playback.

This menu is available only when the video is being displayed.

  1. Press [SETUP] button > [Display] > [Display control].


  1. Select the desired item.

,Note

Press [Centre] to default display control settings.

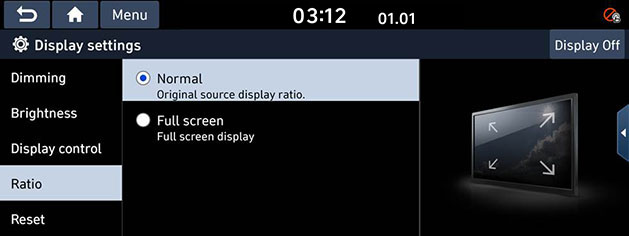

Ratio

Sets the display ratio currently displayed video.

This menu is available only when the video is being displayed.

  1. Press [SETUP] button > [Display] > [Ratio].


  1. Select the desired item.

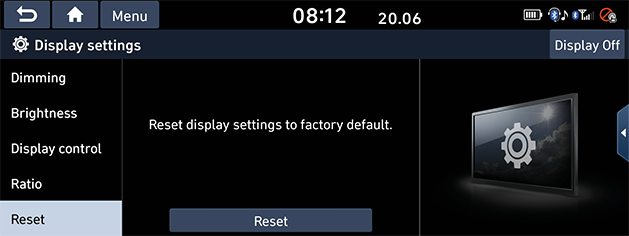

Reset

Resets the display settings to factory default.

  1. Press [SETUP] button > [Display] > [Reset].


  1. Press [Yes].
