Phone

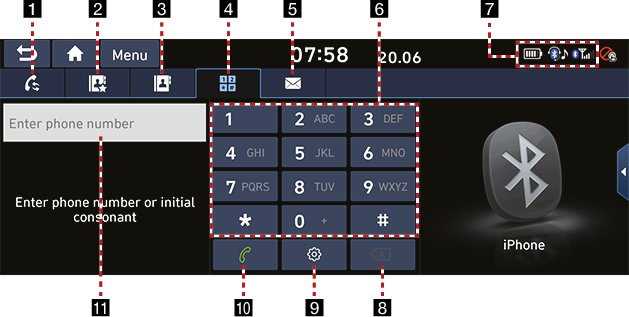

Dial screen

Press [G] on the screen.


1 Recent calls

Moves to recent calls screen.

2 Favourites

Moves to favourites screen.

3 Contacts

Moves to contacts screen.

4 Dial

Moves to Bluetooth phone dial pad screen.

5 Message

Moves to message screen.

6 Dial pad

Enter the phone number you want to call.It will be displayed in the number entrance window.

7 Mobile battery icon (6_PHONE_ICON_BT_BATTERY.png)

Specifies the remaining battery of mobile phone.

Bluetooth connection icon (6_PHONE_ICON_BT_CONNECT.png)

Shows the connection status between Bluetooth phone and the head unit.

When the phone is connected and the phone call is made, Bluetooth icon (6_PHONE_ICON_BT_CONNECT.png) switches to handset icon (6_PHONE_ICON_BT_CALLING.png).

Reception level icon (6_PHONE_ICON_BT_LEVEL.png)

The reception level (sensitivity) of the calling area is specified in the bar graph.

8 Delete

Deletes the entered phone number.

9 Bluetooth connections

Moves to Bluetooth connections screen.

10 Call

If there is a registered phone no., the call is connected. If there is no registered phone no., the most recent call number is entered.

11 Number entrance window

Opens phone number entrance window.

,Note

  • Some mobile phone models may not support the icons of remaining battery and/or reception level.
  • The remaining battery specified may differ in a little degree from the one specified on the phone.
