Phone

Making a call

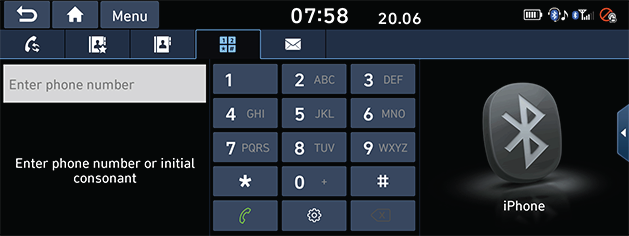

Making a call by entering phone number

  1. Press [Phone] > [G] on the home screen.
  2. Enter the phone number using keypad on the dial screen.


  1. Press [V] on the dial screen or [W] button on the steering wheel remote control.

,Note

If you press the wrong number, press [N] to delete one digit of the entered number.

Making a call by redialling

  1. Press [Phone] > [G] on the home screen.
  2. Press and hold [V] on the dial screen or [W] button on the steering wheel remote control.

,Note

Redialing is not possible when there is no number in the dialed calls list and when call history has not been downloaded.

Answering/Rejecting a call

  1. If there is an incoming call, a pop-up message will appear.
  2. Press [Accept] in the pop-up message or [W] button on the steering wheel remote control. To reject a call, select [Reject] in the pop-up message or [Z] button on the steering wheel remote control.

To send rejection message of an incoming call, select [Message] in the pop-up message.

,Note

  • If the Call-ID service is available, the caller’s phone number is displayed.
  • If caller’s phone number is saved in the phone book, the caller’s name is displayed on the unit.
  • Upon receiving a call, the [Reject] function may not be supported in some mobile phones.

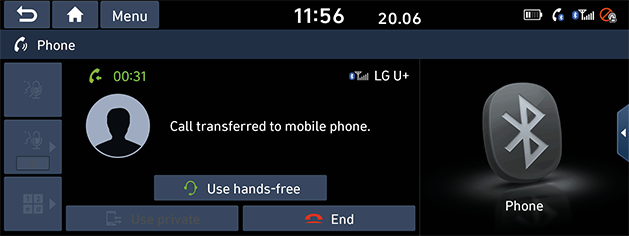

Switching call to the mobile phone

  1. If you want to switch the call to the mobile phone while talking on the car hands-free, press [Use private] on the screen or press and hold [W] button on the steering wheel remote control. As shown below, the call is switched to the mobile phone.


  1. If you want to switch the call to the car hands-free while talking on the mobile phone, press [Use hands-free] on the screen or press and hold [W] button on the steering wheel remote control. The call is switched to the car hands-free.

Ending a call

To end a call, press [ZEnd] on the screen or [Z] button on the steering wheel remote control.

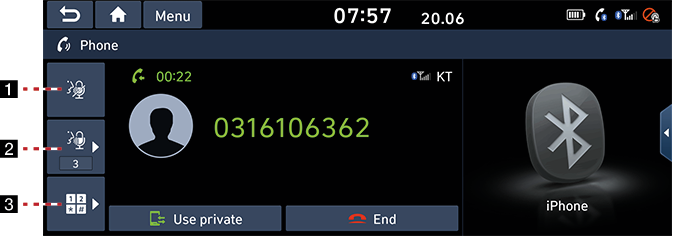

Using the menu during a phone call

When making a call, you can use the following menu items.


1 Mic

Turns the mic On/Off.

2 Outgoing volume

Displays the outgoing volume settings.

You can adjust the in-call volume that the other party hears.(level 1-5)

3 Keypad

Moves to a screen for entering ARS numbers.
